UPASS Swing Turnstile
The UPASS Swing Turnstile by Unifi Access is designed for pedestrian access management in areas that don’t require heavy security. With a 900mm passage width, it allows smooth and controlled movement of authorized individuals while preventing unauthorized entry.

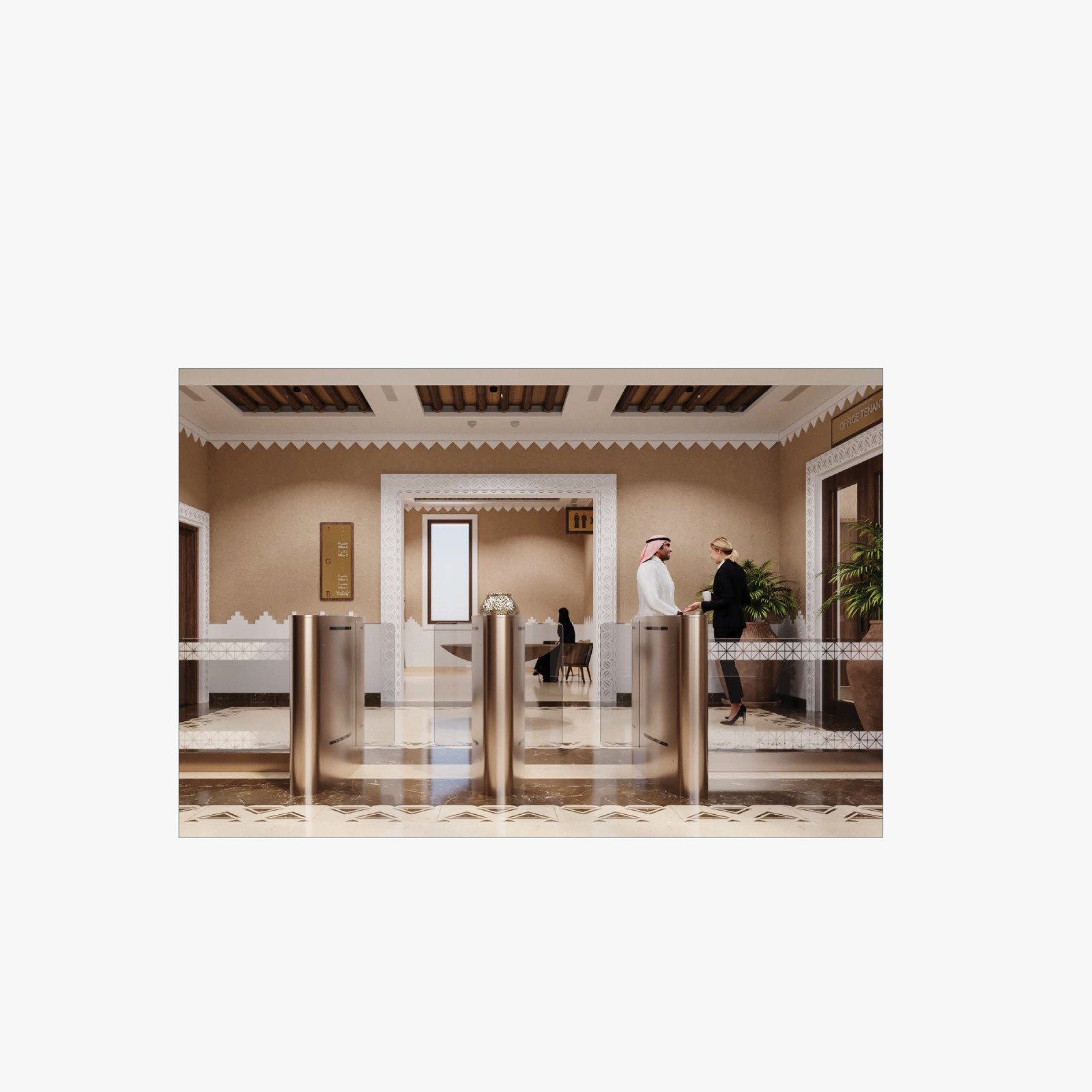

Ideal for office buildings, commercial complexes, transit stations, and recreational facilities, the swing turnstile combines modern aesthetics, advanced safety features, and intelligent monitoring to provide reliable, secure, and efficient access control. Its sleek design enhances the look of your facility while maintaining high operational performance.
Equipped with DC motor-driven gates, AI-powered monitoring, and optional OLED displays, the UPASS Swing Turnstile ensures fast, safe, and secure access. Integrated safety sensors prevent accidents, while smart diagnostics and AI security monitor traffic flow, detect tailgating, wrong-way entries, and unauthorized access, alerting operators immediately if necessary.
This turnstile is flexible and future-ready, supporting multiple access methods, making it suitable for a wide range of applications where efficiency, safety, and security are essential.
CUSTOMIZATION
- Electrical Specifications:

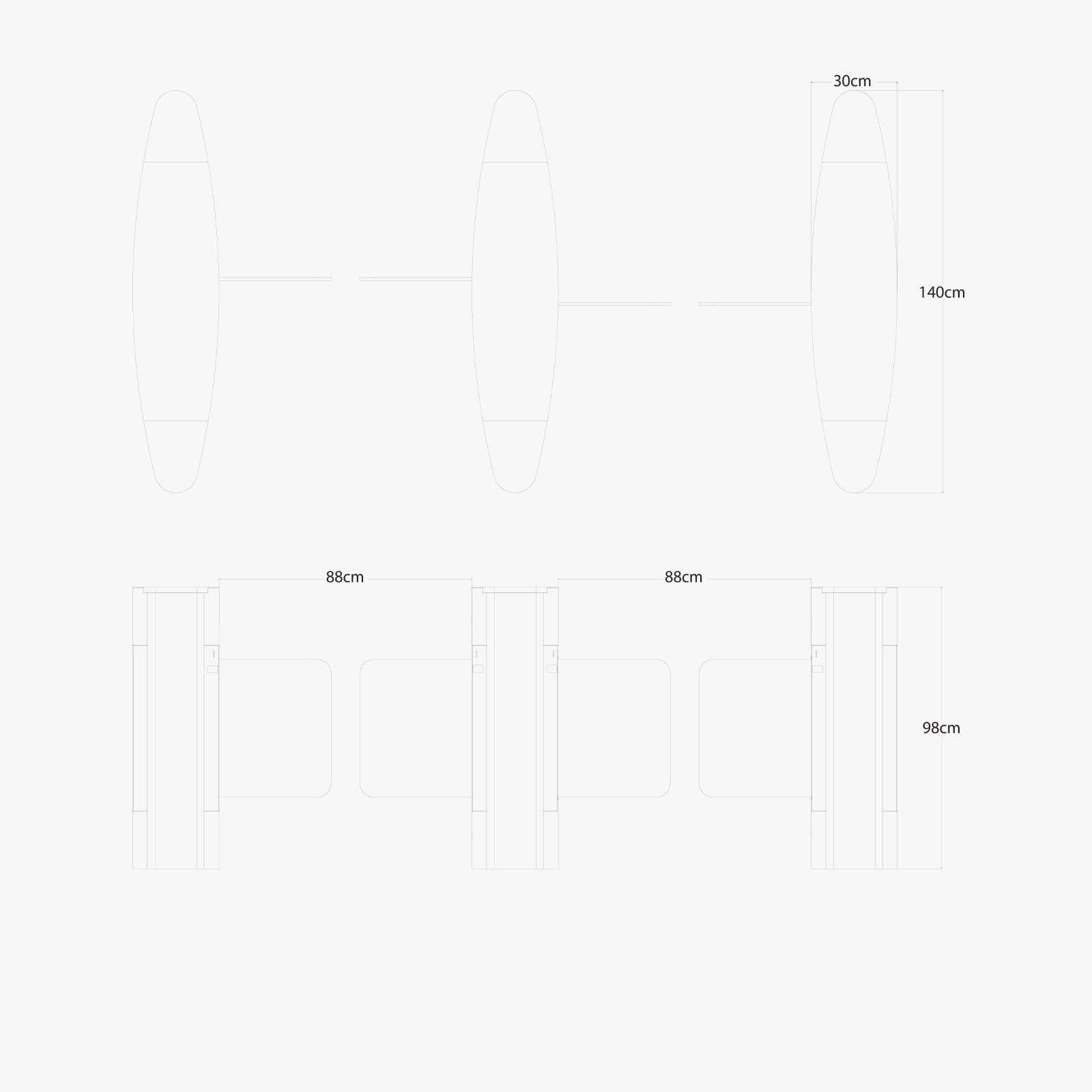

- Unit Width: 300mm
- Unit Length: 1400mm
- Unit Height: 1000mm
- Passage Width: 900mm
- Open / Close Speed: 0.8s
- Mechanism: BMDrive® servo-driven (BLDC)
- Locking System: DeadLock®
- Maximum Power Consumption: 160W
- Voltage: AC (100-240)V, 50/60Hz — DC 12V
- Indication: DotLights®, RFIDLights®, LeafLights®
- Interface Ports: Ethernet, RS232, RS485, 6 Isolated Digital Inputs (Fire & Alarm included),
3 Output Relay 2A, 2 Wiegand Interface, 1 USB Power Supply Port (5VDC) - Support Protocols: HTTP, TCP
- Memory Capacity: 60,000 Cards — 19,000 Records — 8,800 Events
- IOT: Online / Offline support
- Mean Time To Failure (MCBF): 10,000,000 cycles
- Operating Temperature: -15°C to +65°C — Max. Humidity 90% (non-condensing)
- Material & Finishing Specifications:
- Standard Housing: Brushed Stainless Steel AISI 304
- Available Housing Options:
Brushed SS AISI 316 / Polished SS AISI 304 / Polished SS AISI 316 / Powder Coated RAL - Top Lid: Stainless steel top with access readers
SPECIFICATIONS

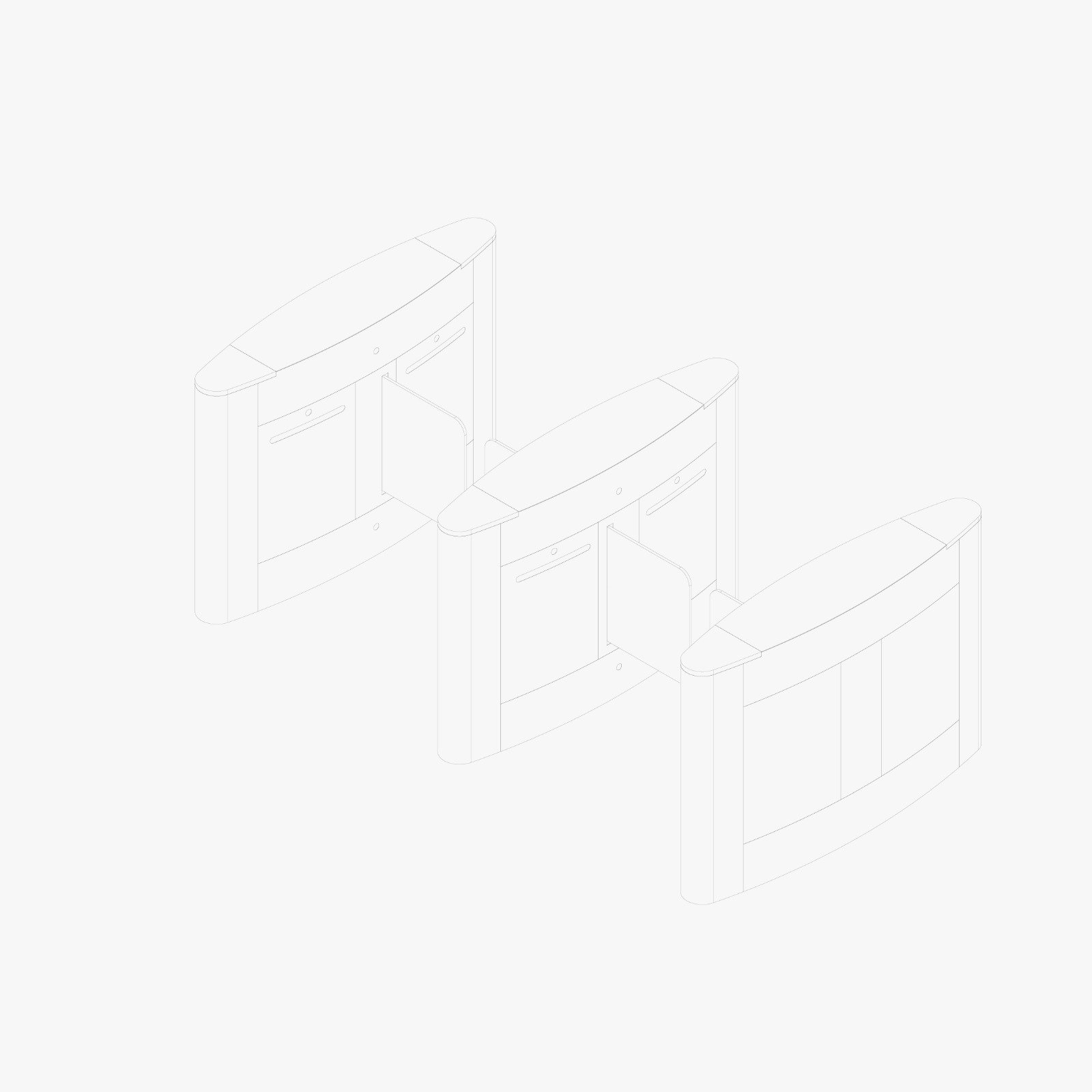

- Modern, sleek swing design
- DC motor for smooth operation
- Tamper-proof Deadlock security
- Smart diagnostics with error logging
- Optional OLED display for info/ads
- Safety sensors to prevent accidents
- AI-powered security monitoring
- Supports multiple access methods
KEY FEATURES
LED ALERTS
Indicate traffic direction with highly-visible green and red. The front post LED will keep green arrow shows that the lane is available.
ANTI-INTRUSION
The gate is locked automatically until a valid open signal is sent.
WORKING DIRECTION
Single directional or Bidirectional is optional.
AUTOMATIC RESET
The flap arms will lock automatically within 5s (Adjustable) if a person delay to access.
ANTI-PASS BACK
The gate will stay in lock if someone wants to entry in the reverse direction.
EMERGENCY EXIT
The function allows free passage in the event of an emergency or power outage, automatic reset when power is restored, fully integrated with BMS and fire alarm.
HIGH PERFOMANCE
Long-life performance, high operation dependability and fast response.
FAST UNLOCK
One there is a valid signal, the gate will unlock within 0.2s (adjustable).
HIGH MECHANISM
Full height mechanism with gear drive, running smoothly and stable and durable
ALARM FUNCTION
Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.
