UPass (tripod)

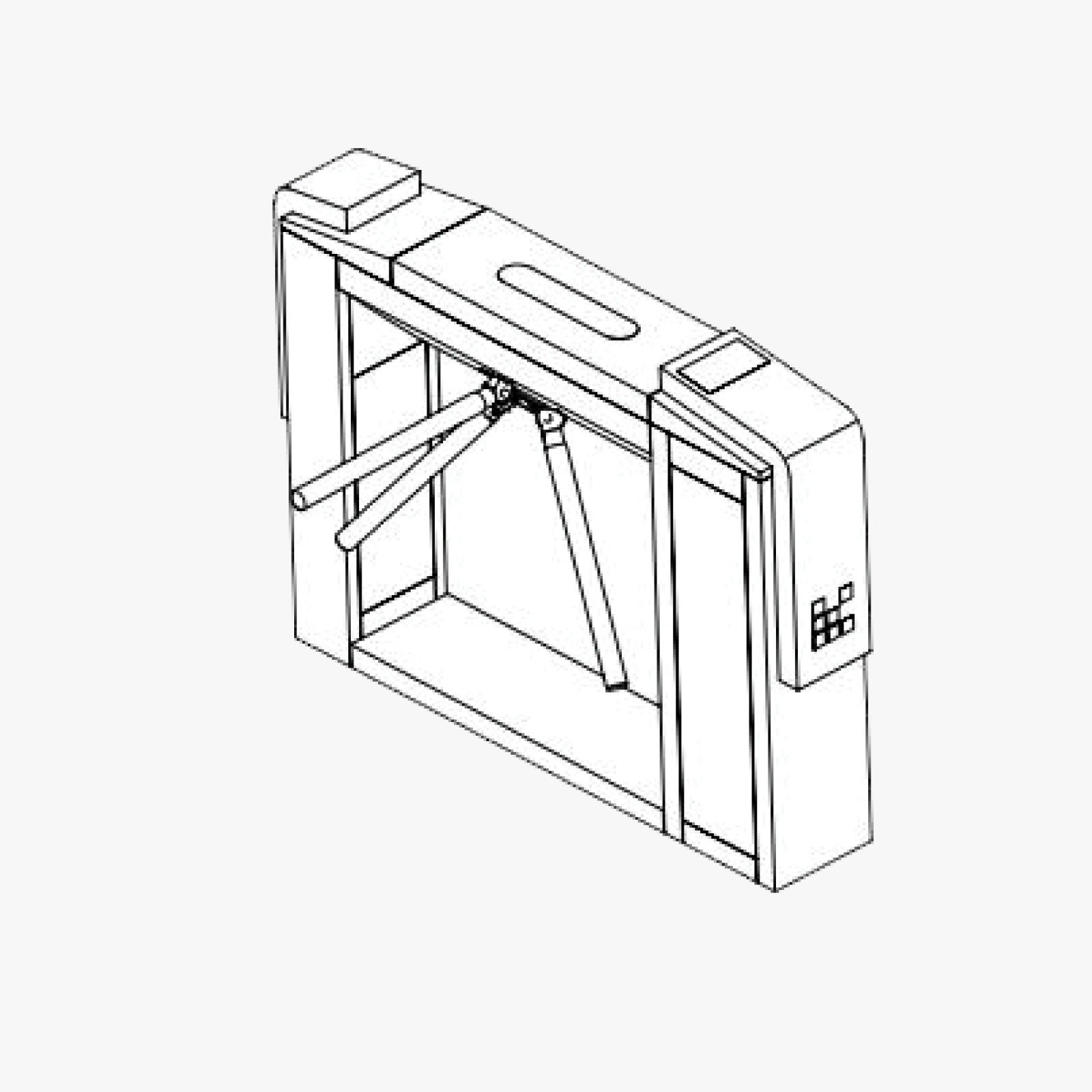

UPass Tripod Turnstile features three rotating arms that block or allow passage when activated. The arms rotate in a set direction and automatically return to their default position after each use, ensuring controlled and efficient access flow.
Tripod turnstiles are widely used in various environments to enhance security, manage pedestrian access, and prevent unauthorized entry. They can be configured for either unidirectional or bi-directional operation—allowing passage in one or both directions through the same access point.
To ensure smooth user experience, tripod turnstiles are equipped with visual indicators and audible alerts to clearly signal whether access is granted or denied.
Built from durable materials—such as high-quality 304 stainless steel—security tripod turnstiles are designed to withstand heavy use and harsh conditions, making them ideal for high-traffic areas.
CUSTOMIZATION
- Dimension: Can be made according to the client's site.
- The semi-automatic mechanism can be replaced with a fully automatic mechanism.
- Material: 304 stainless steel to 316 stainless steel (wet environment), or iron with powder coated.
- The outer paint finish can be colour coated to match the local environment.
- LED lights can be added.
- Mounting base can be added.
- LOGO can be customized.
- Customized 3D drawings are available based on the site photos.
- OEM& ODM service is available.
SPECIFICATIONS

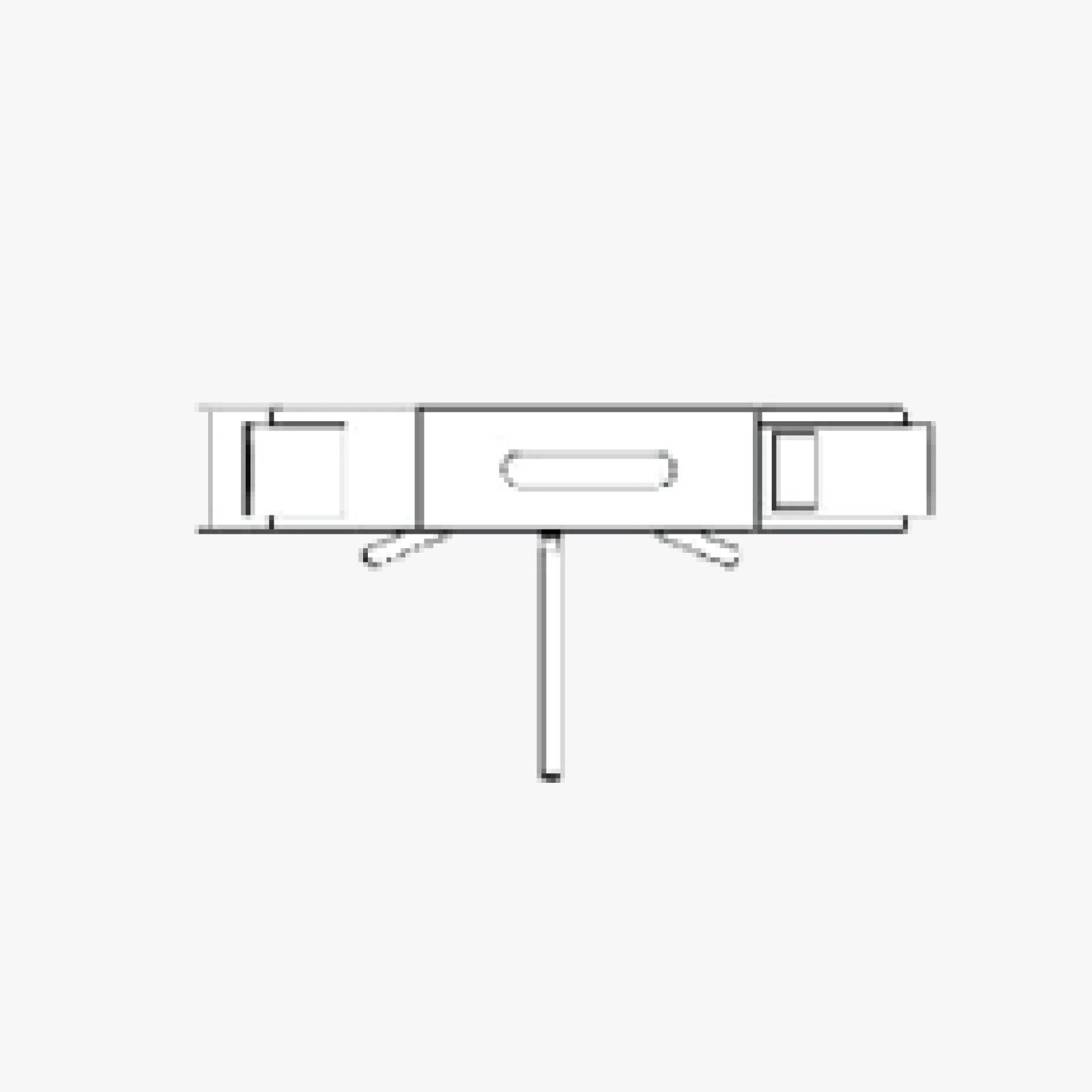

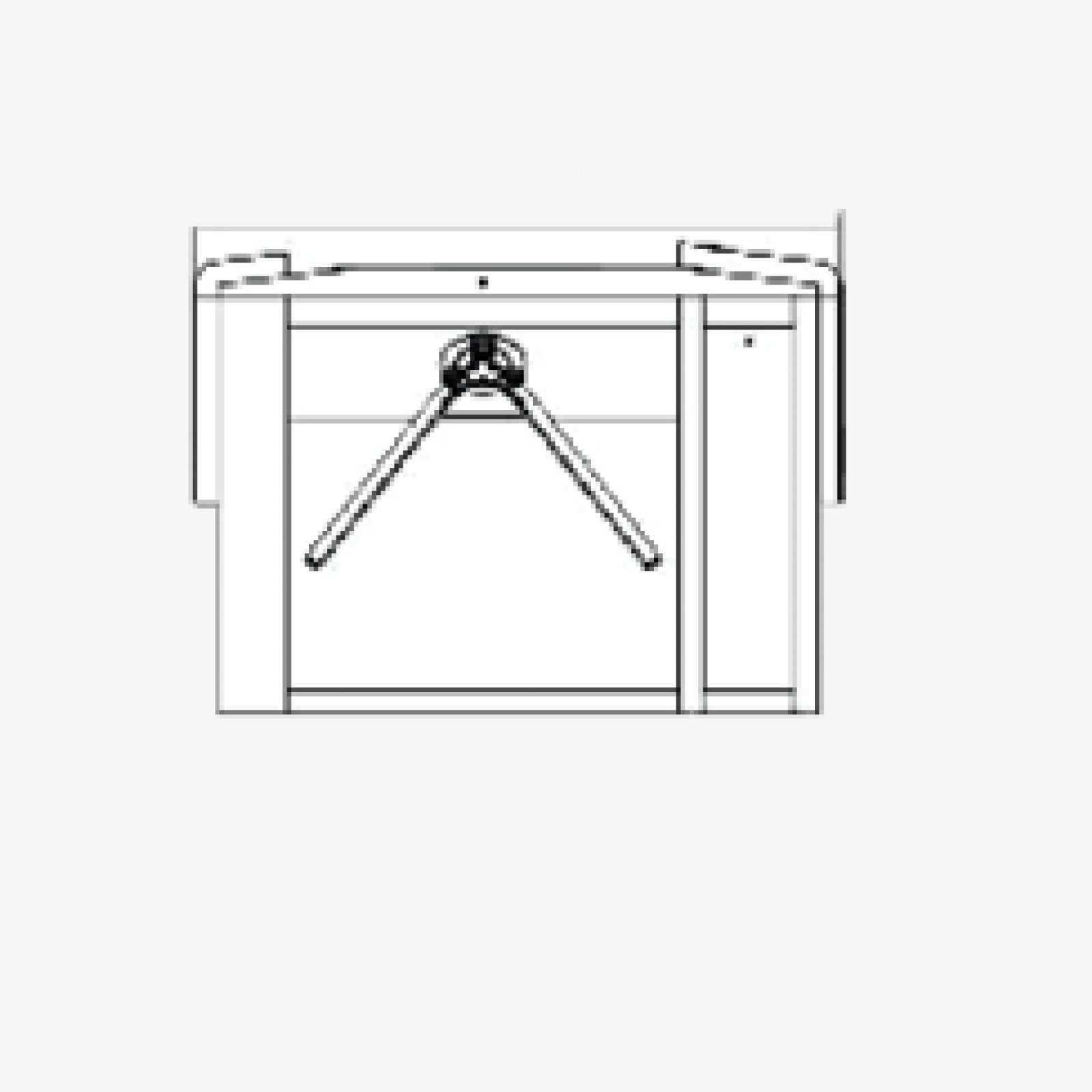

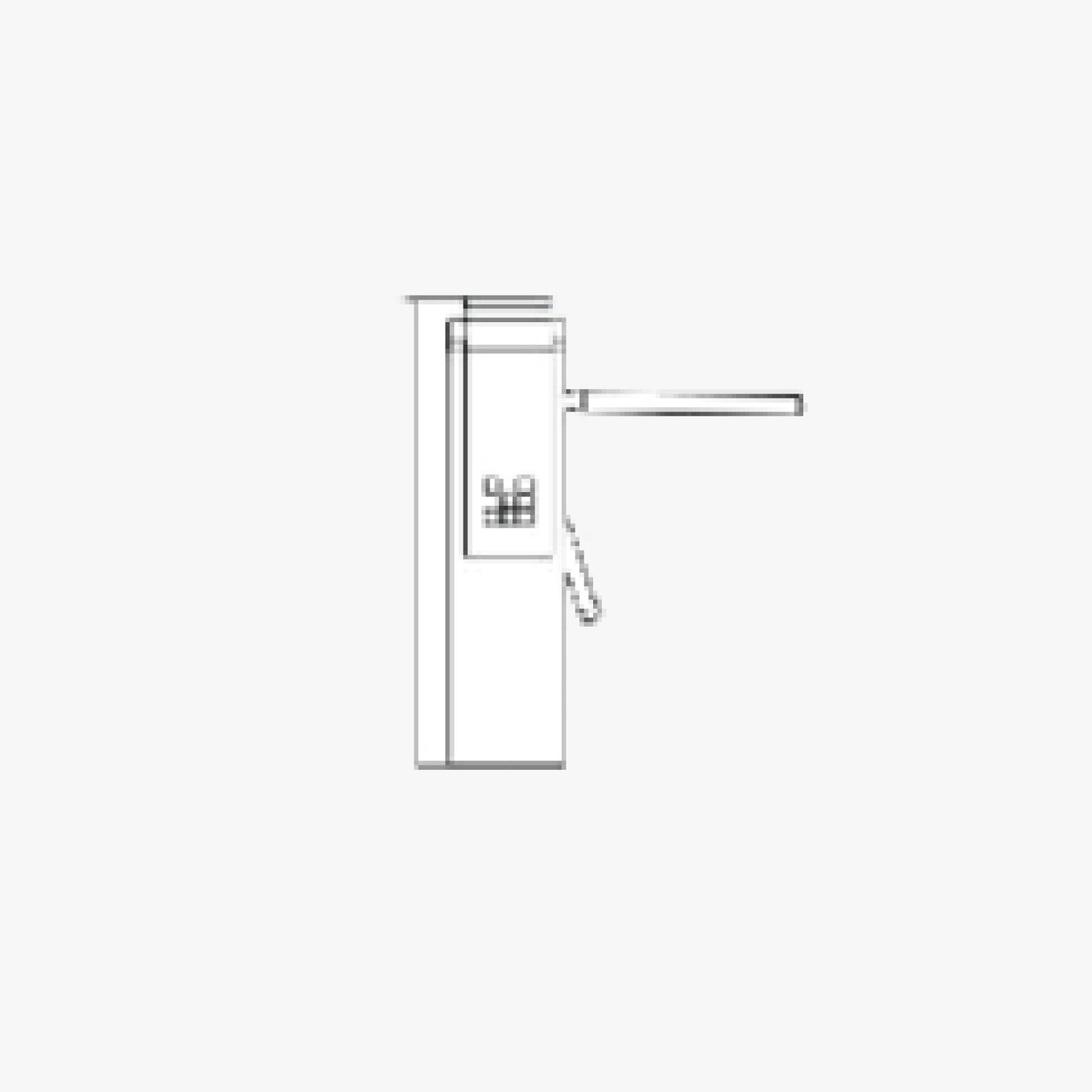

- Dimension 1400*280*1010mm (4.59*0.92*3.31ft) (standard
- Passage Width 550mm (1.80ft) (standard)
- Arm Length 510mm (1.67ft)
- Mechanism Semi-automatic
- Pass Rate 30-40 person/min
- Frame Material 304 stainless steel and powder coated (standard), 316 stainless steel
- Power Supply 100V-240V 50/60Hz
- Drive Solenoid DC 24V
- Open Signal Passive Relay (Dry Contact)
- Working Direction Bi-directional(standard), Unidirectional
- Emergency Automatic drop arm after power failure
KEY FEATURES
LED ALERTS
The front LED will keep green shows that the lane is available. If the lane is not available, it will turn red.
EMERGENCY EXIT
Functionality allows free passage in the event of an emergency.The arm will drop off when power outage. Manually reset when power is restored
MOLD DESIGN
The mechanism is mold design. The components are more precise. It can save more labor cost and easier to assemble.
HYDRAULIC DAMPER
Equipped with a hydraulic shock absorber for less noise during operation.
ANTI-PASS BACK
The turnstile will stay in lock if someone wants to entry in the reverse direction.
ANTI-INTRUSION
The gate is locked automatically until a valid open signal is sent.
FAST UNLOCK
One there is a valid signal, the gate will unlock within 0.2s (adjustable).
AUTOMATIC RESET
Arms will lock automativcally within 5s (adjustable) if a person delay to access.
WORKING DIRECTION
Single directional or Bidirectional are optional.
