Ugate Smart
UGATE SMART is an intelligent gate barrier solution designed to provide efficient and seamless access control for both private and commercial properties. Intelligent gate barriers can be connected with Automated Number Plate Recognition (ANPR), parking management solutions, and advanced access control devices, transforming the way we manage vehicle entry and exit. These gate barriers not only enhance security but also streamline operations by automating the entry process.
Moreover, these intelligent gate barriers are designed to operate in various modes to suit different requirements. They can function as standalone units, ensuring uninterrupted operation even if network connectivity is lost. Alternatively, they can be integrated into a cloud-based solution, offering centralized management, remote monitoring, and real-time data access across multiple sites.
This cloud integration facilitates scalability, making it easier to manage access across a large number of barriers and locations from a single platform.
Intelligent gate barriers with expandable integration capabilities are not just a luxury, but a necessity for modern access management. They offer robust security, convenience, and flexibility—whether operating independently or as part of a broader, cloud-based access control system.
CUSTOMIZATION
- Product Name: UGate Smart

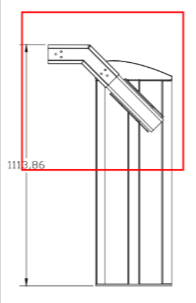

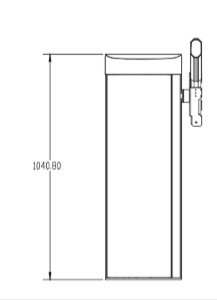

- Dimension: 352mm x 1040mm x 352mm (W x H x D)
- Weight: Approx. 41kg without arm
- Operation Voltage: 220V AC ±10%, 50–60 Hz
- Power Consumption: 145W during moving arm
- Operation Temperature: -30°C to +65°C (Humidity 90% non-condensing)
- Protection: IP54
- Smart Option: Internal smart CPU for cloud connectivity supporting dual ethernet interface, WIFI, GSM 5G, Bluetooth 5.3, RS485, RS232, 2x USB 2.0, USB 3.0
- Standard Color: High quality aluminum anodized finish, corrosion resistance, ventilation — Dusty Gray RAL 7037
- Drive Technology: DC 24V, Brushless servo motor, opening/closing time 0.8 – 1.4 Sec
- Contour Stripes: Dynamic RGB
SPECIFICATIONS
- We use premium-quality materials
- Innovative access control technology
- Certified and skilled engineering team
- Serving multiple industries efficiently
- Scalable and future-ready solutions
- Trusted for safety and reliability
- Smart remote management system
- Proven long-term performance
KEY FEATURES
Premium Aluminum Build
Crafted from high-quality aluminum with a thermoplastic top cap for superior durability and resistance to environmental conditions. Designed to maintain performance and appearance even in heavy-use outdoor environments.
Breakaway Safety Mechanism
An innovative breakaway system enhances user and vehicle safety by minimizing damage in case of accidental impact.
Modular Expansion Options
The UGate system is designed for scalability — optional modular upgrades allow seamless integration with additional access control or monitoring technologies
Self-Locking Drive System
Equipped with a secure self-locking mechanism that prevents unauthorized access and guarantees stable barrier operation at all times.
Customizable RGB Barrier Arms
The barrier arms can be fully customized in length, color, and illumination. Integrated RGB lighting adds visibility, aesthetics, and functional signaling.
Long-Lasting Performance
Tested for 10 million cycles of operation and backed by a 3-year warranty, ensuring dependable performance with minimal maintenance.
