Cloud S13 (Uaccess)
UPARK — Cloud-Based IoT Parking Platform
UPARK is a customer-centric, cloud-based parking solution that supports multi-use kiosks and multi-space meters. Known for its reliability and high performance, it provides an environmentally friendly solar-powered system designed to optimize modern parking operations.
Going far beyond traditional on-street payment methods, UPARK plays a vital role in managing unattended parking lots, supporting automated enforcement, and enabling additional smart services. It offers advanced features such as Car Locator, parking subscriptions, and personalized user experiences tailored to customer needs.
The system can be seamlessly operated through on-street devices or a user-friendly mobile application — ensuring secure transactions and flexible support for various payment methods.
CUSTOMIZATION
- Operation System: Custom Firmware
- CPU Power: Industrial Grade Quad-core CPU
- Screen: 10.1 inch TFT Panel, Capacitive Touch Screen, 1280x800 pixels, 60Hz, 16:10 aspect ratio, Light Sensor, Industrial protection
- Peripheral devices: QR-Code / 2D Scanner, NFC 13.56mhz
- Integration: ANPR Automatic License Plate Recognition - Enforcement system - Mobile Payment - Validation Codes - Visitor Management - Reservation - B2C / B2B Subscriptions
- System Requirement: Internet Connection
- Bank Note Recycler (Optional): Bill-to-Bill TD, up to three recycling cassettes, up to 100 notes each, Cash capacity of up to 600/1,000 banknotes
- Coin Validator (Optional): Comestero Three and 4-way sorting plus reject mechanism
- Printer: Direct Thermal, 54mm, 203 dpi (432 dots/line), Speed 250mm/s, Paper Roll Diameter 150mm
- Communication Interface: Dual Ethernet Ports, Wi-Fi 6, Bluetooth 5.2, GSM 5G, 2 USB Ports
- Including: Controller, lithium batteries and Adjustable Mount Bracket
- Operating Voltage: AC 120~240V @ 60 Hz (Avg. consumption 30Wh)
- Additional Built-in Output Power Supply: 3.3V, 5V, 12V, 24V DC / max 5 Amps
- Extra UPS Battery (Optional): 1000VA
- Operating Temperature: -15°C ~ 65°C / ≤90% Non-Condensing
- Operating Environment: Outdoor / Indoor

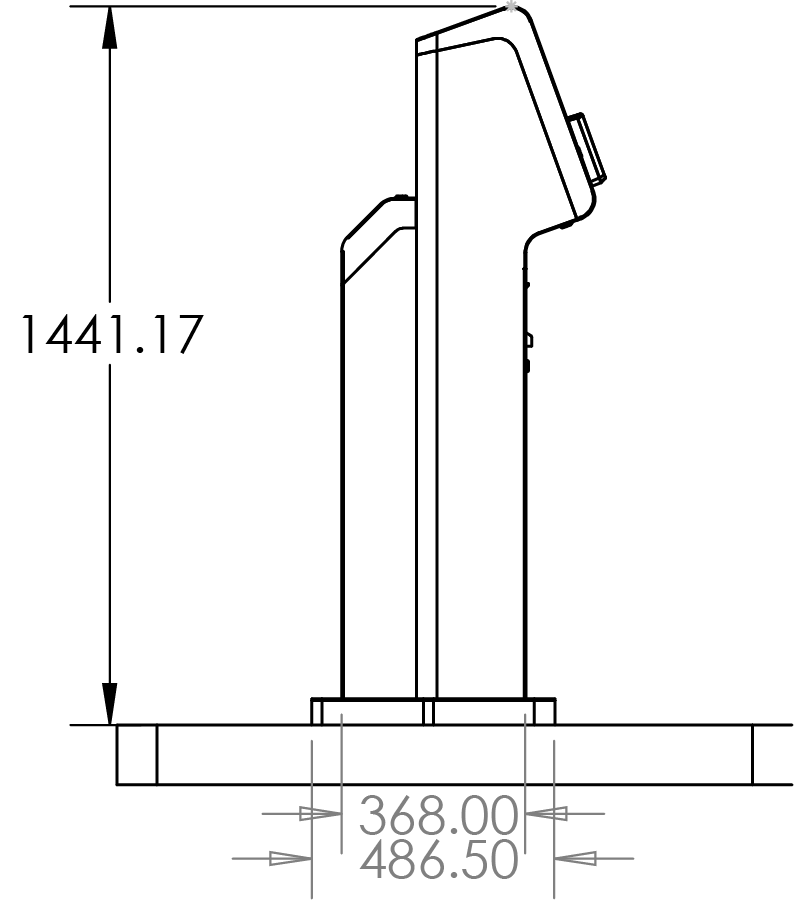

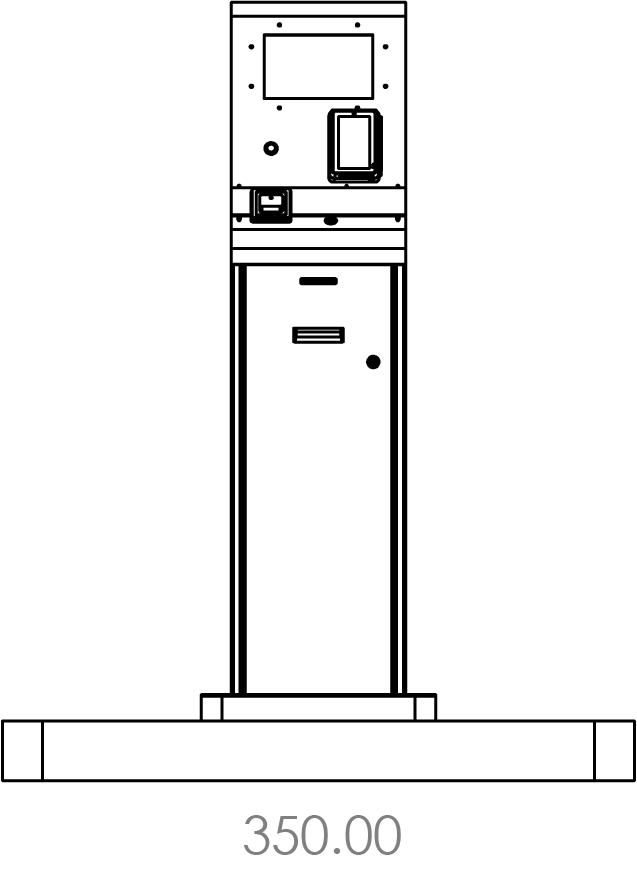

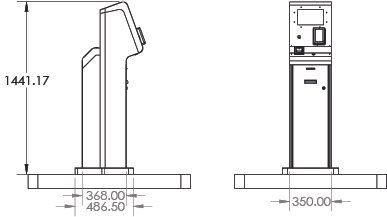

- Dimensions (LWH): 470mm * 566mm * 1439mm
- Weight: 32.17 KG
SPECIFICATIONS

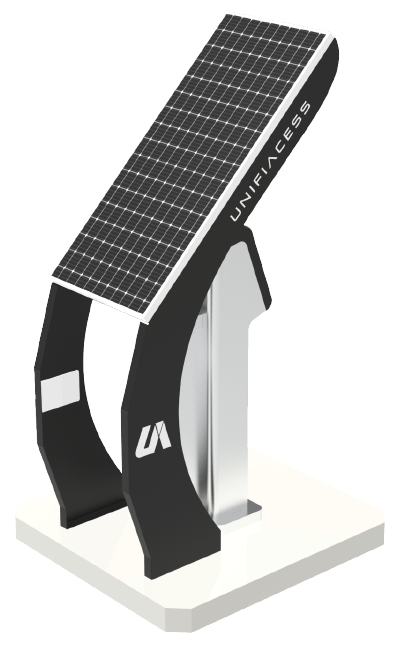

- Solar-powered and eco-friendly design
- Rugged and durable steel construction
- Advanced security with AES 256-bit encryption
- Remote software upgrade capability
- Multiple payment options supported
- Vehicle locator and mapping services
- B2B/B2C subscription management
- Efficient enforcement and service platform
KEY FEATURES
RUGGED DESIGN
The product is composed of high-quality heavy-grade steel, featuring a collection vault door constructed with additional steel plates and internal hinges equipped with anti-wrenching elements and enhanced corrosion resistance.
FLEXIBLE PAYMENT
Supports multiple payment methods, such as cash, coin, cashless, mobile payment, debit card/credit card and validations code. Comply with the ZATCA system and electronic invoices
INTEGRATED ONE SOLUTION
UPark device can integrate with different subsystems/ Solar Panels/ EV Charges Stations/ 220 degree Camera Sensors/ Ground Sensors/ ANPR Camera
STRONG SECURITY PROTECTION
Multi-layer independent structure safety lock separate the operational access, maintenance and cash replenishment. Advanced Encryption Standard (AES) with a 256-bit key length for data encryption.
REMOTE UPGRADE SERVICE
The management center will seamlessly detect the software environment and version, and push updates based on customer demand to ensure secure and reliable operation.
VALUE-ADDED DIGITAL SERVICES
The Platform provide list of stander services/ Enforcement/ Mobile Payment/ Car Locator / Map/ B2B / B2C subscription/ Validation Codes
